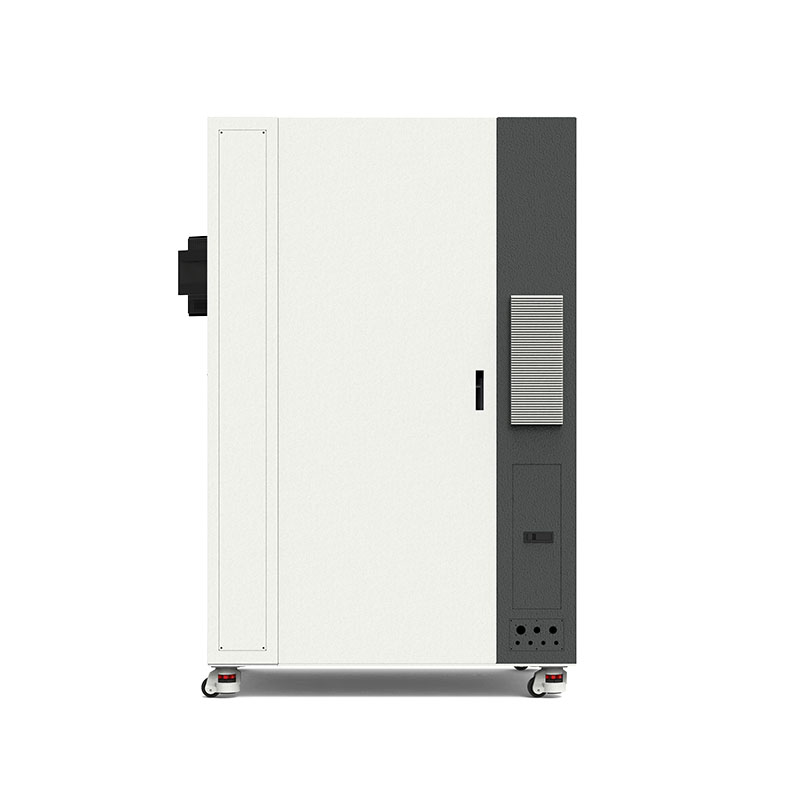

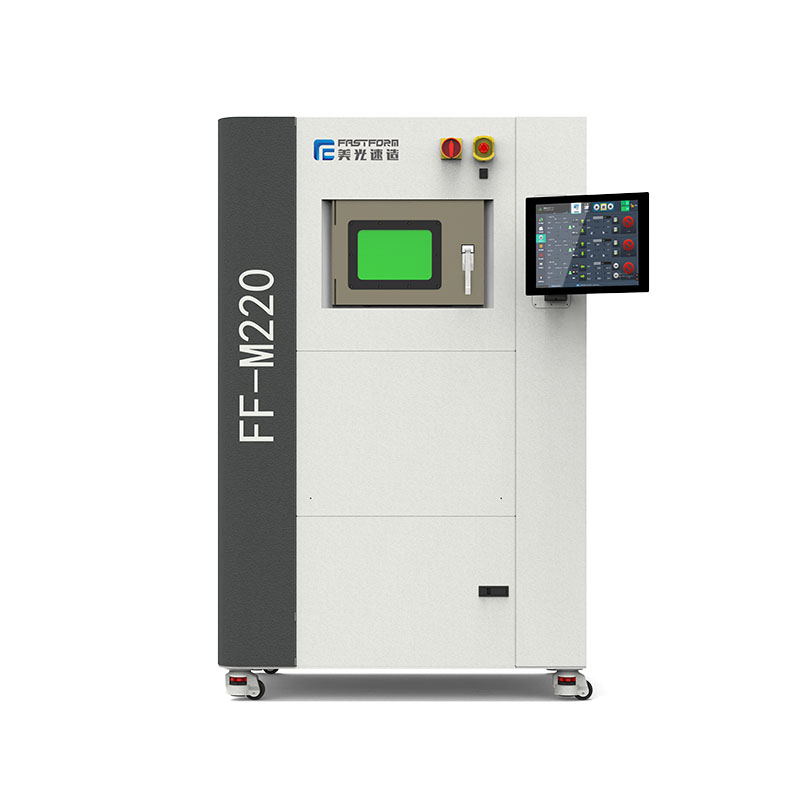

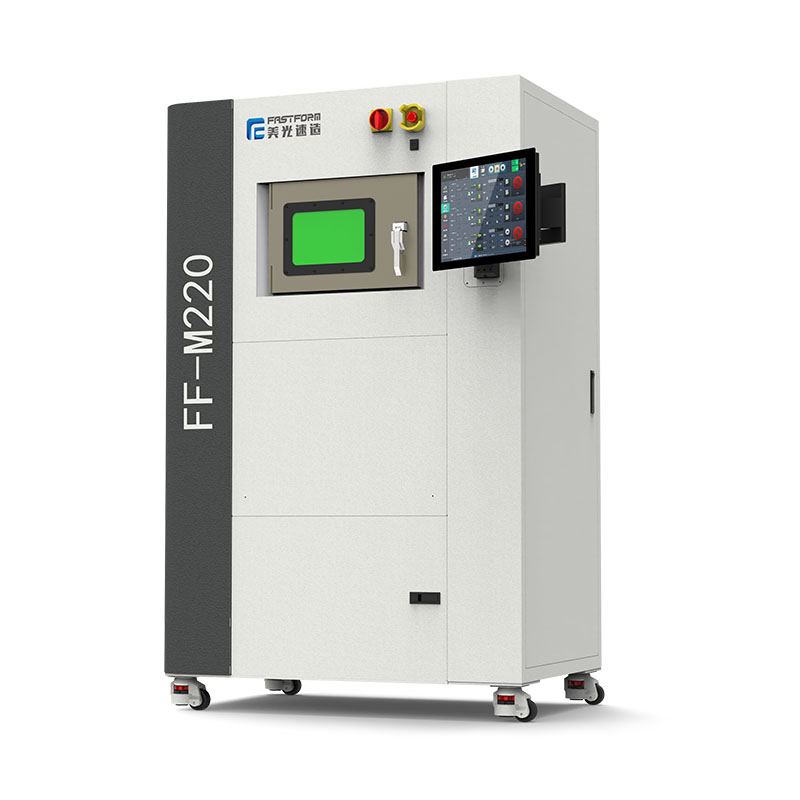

SLM Metal Dental 3D Printer Dual Laser Printer FF-M220

Large-size printed substrate, dual laser sources integrated, printing efficiency increased by more than 2 times.

Designed for large-scale dental industrial production.Each baseplate could maximum printing 320~350 teeth or 35 framework .

A database of metal powders is available for use with CoCr, titanium and integrated Fastform dental printing applications.

Advanced 3D Printer Features

Equipped with a high-brightness laser source with high power density, enhancing printing speed while maintaining quality.

Features a Scanlab galvanometer with high precision, minimal drift, and accurate position monitoring.

Ideal for laser powder bed fusion, laser sintering, and additive manufacturing (laser 3D printing).

Utilizes dual 500W continuous fiber laser sources, offering high brightness and power density output.

Beam quality with M^2≤1.15, significantly reducing power consumption.

    Product specifications

    Product Model

    Fastform FF-M220

    Printing size LxWxH 220X140x 100mm Software FastLayer FastFab
    Beam size 50~80mm Powder layer thickness 20um~50um
    Recoat type Silicon Rubber Number of Lasers Dual lasers
    Laser power  500w x2 Power supply 220V 50hz
    Power consumption 3kw Protective Gas Nitrogen ,Argon
    Min. Oxygen Content 0.01% Cooling method Water -cooling
    Baseplate fixing mode Magnetic quick mounting Powder Spreading Method Top-down Powder Feeding system.
    Scanning speed 0-10000mm/s Printing accuracy ±0.05MM
    Typesetting mode One-click done Filter lifetime Permanent filter less than 30000Hrs.
    Printable material CoCr, Titanium alloy, pure Titanium , etc Printer Dimension 1150X750X1800mm(LxWxH)
    Maximum power addition 6L Net Weight 550kg

    Software Of Fastform

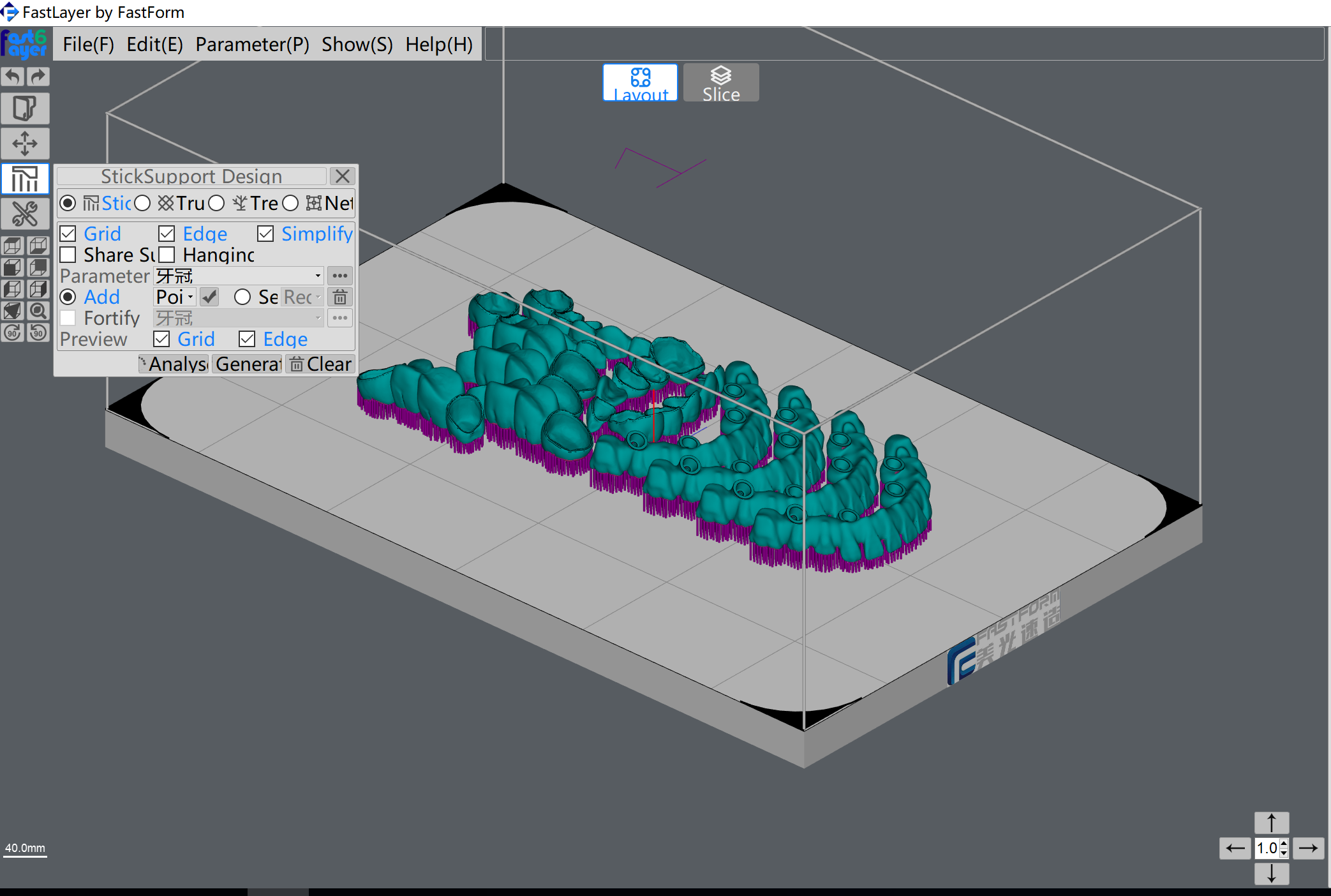

    Fastlayer software

    Developed over 8 years, our 3D slicing software enables automatic programming for precise dental and industrial designs.
    Complete layout and path planning with a single click. Customize the print platform size and refine any model.
    Supports various 3D printing file formats: STL, OBJ, CAD, STEP, 3MF.
    Integrates printing parameter databases for multiple metal materials, with independently developed precision parameter libraries for dental cobalt-chromium and titanium alloys.
    Provides customers with the ability to independently develop and customize parameter functions.

    1
    FastFab

    Intuitive user interface, well-structured layout, and a range of tools and features.
    The software’s user-friendly, efficient workflow and simple controls enable users to perform tasks with ease.
    The software’s performance and responsiveness ensure a smooth, uninterrupted user experience.
    It only takes 5-10 minutes to master.
    All operation processes are completed step by step, without logical errors, saving time and print quality.

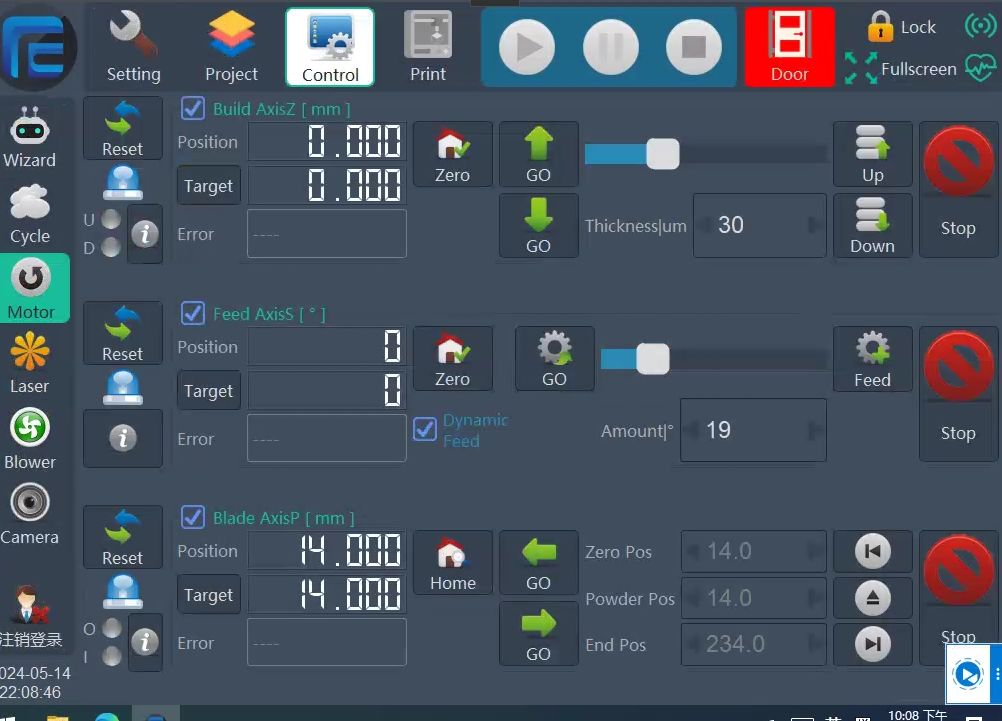

    Fastlayer software (2)8r7

    Using a camera, operators can easily monitor the printing process without being exposed to laser radiation.

    11vhu

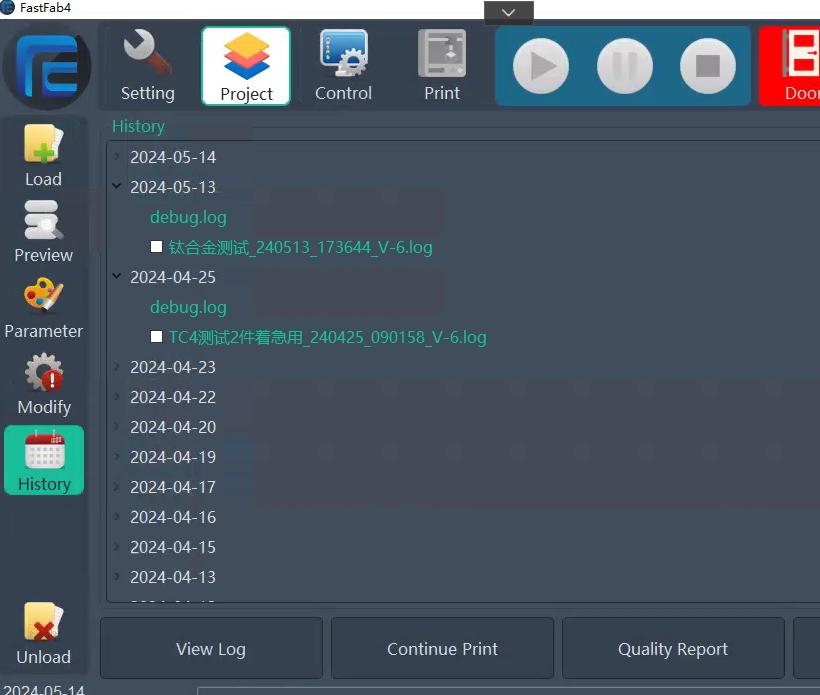

    The print log will record all printing process data to facilitate checking of all printing procedures.

    Provide customer service support through analysis and troubleshooting to improve the quality of metal powder printing.

    2wx2

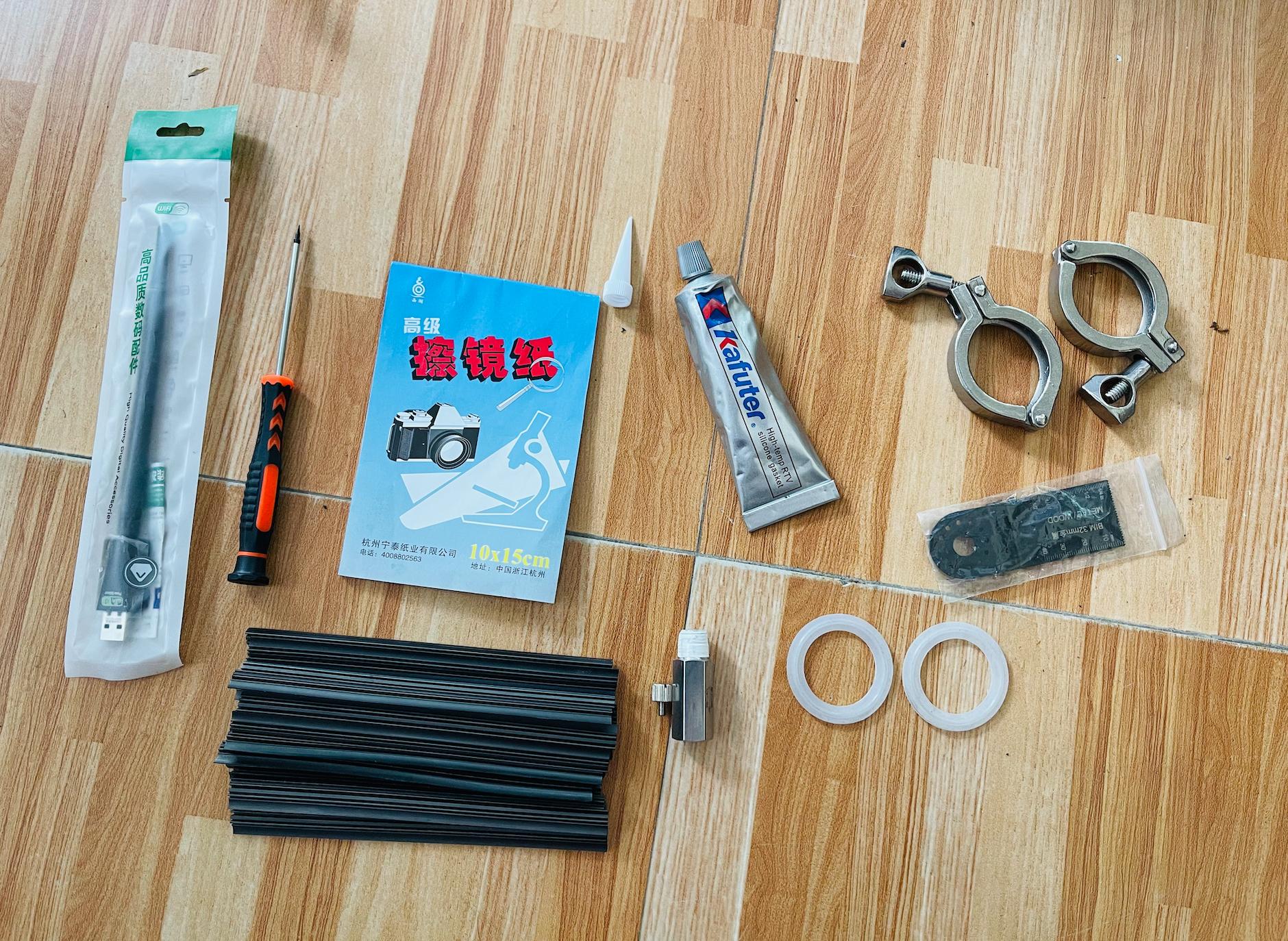

    Accessories

    1. Cleaning tools
    2. Imitation silicone blade
    3. Manual hardware tools
    4. Stainless steel base plate
    5. Other essential tools and accessories

    3ilq

    Auxiliary equipment

    476w

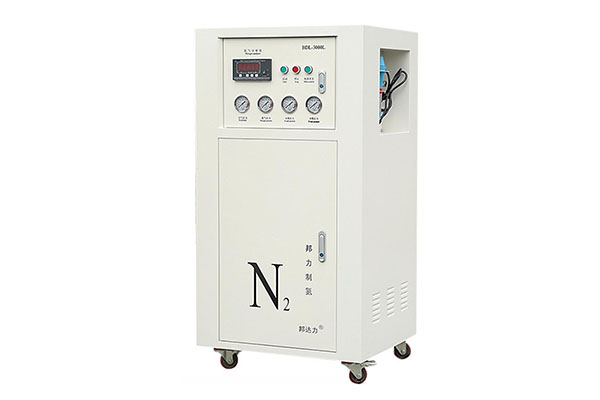

    Nitrogen Generator

    5yek

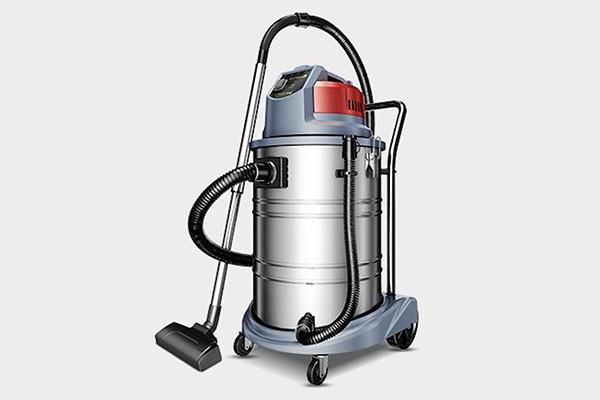

    Vacuum Cleaner

    61z7

    Sieving machine

    7k37

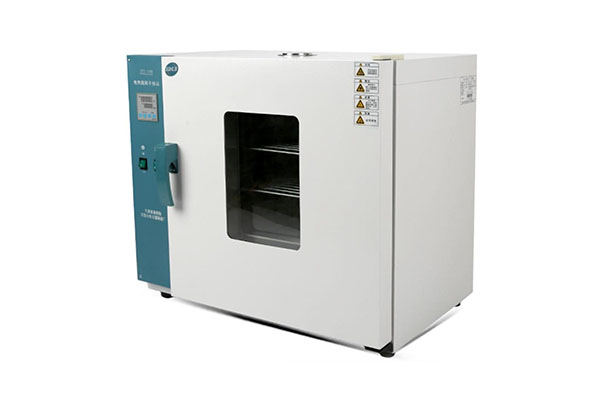

    Powder drying oven

    804p

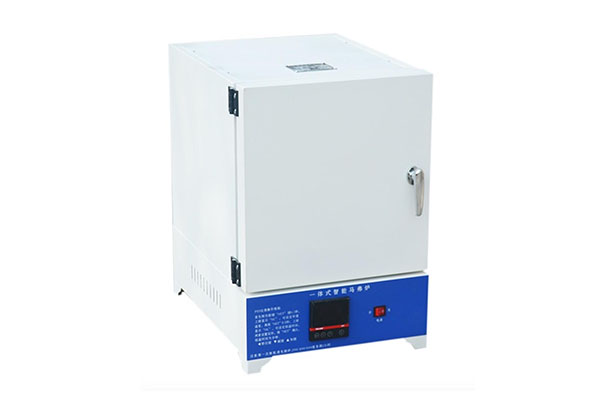

    Heat treatment furnace

    94gw

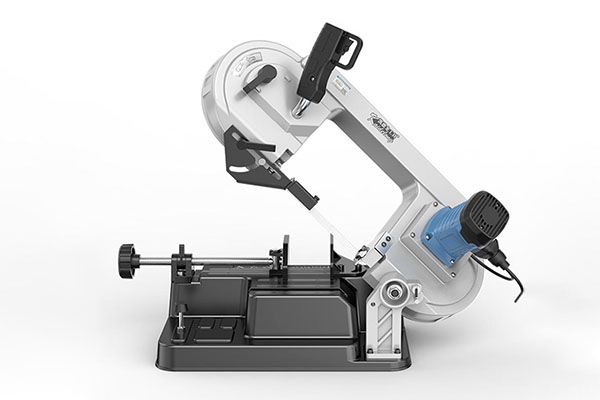

    Sawing machine

    10l83

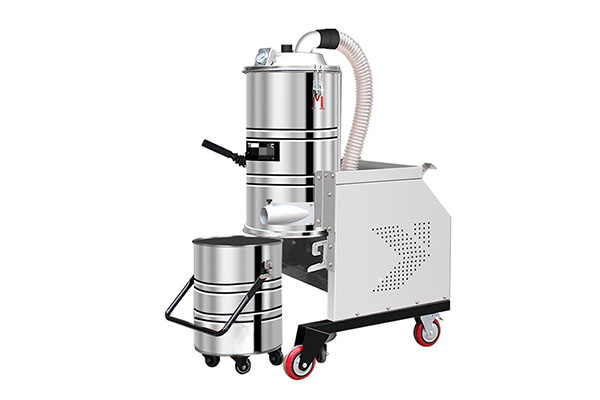

    Explosion proof vacuum Cleaner

    fd6a4d27-0f45-4952-8c5b-73e89c7afbf1g4z

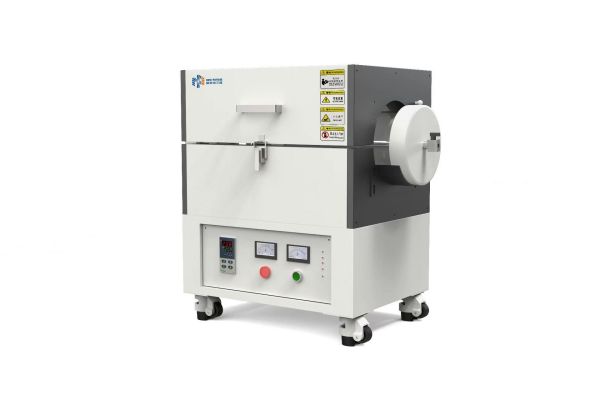

    Vacuum Heat treatment furnace

    Material for printing

    12g8w

    Cobalt-Chromium

    138bf

    Titanium

    14kds

    Aluminum alloy

    15s86

    Stainless steel

    16du5

    Nickel Alloy

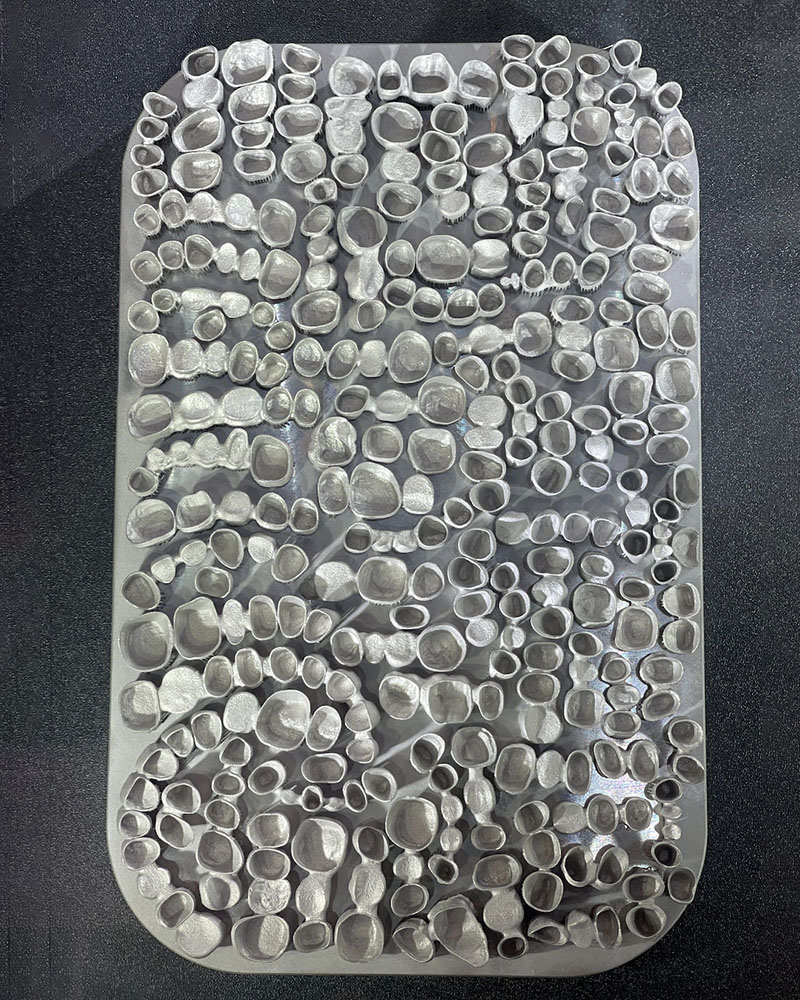

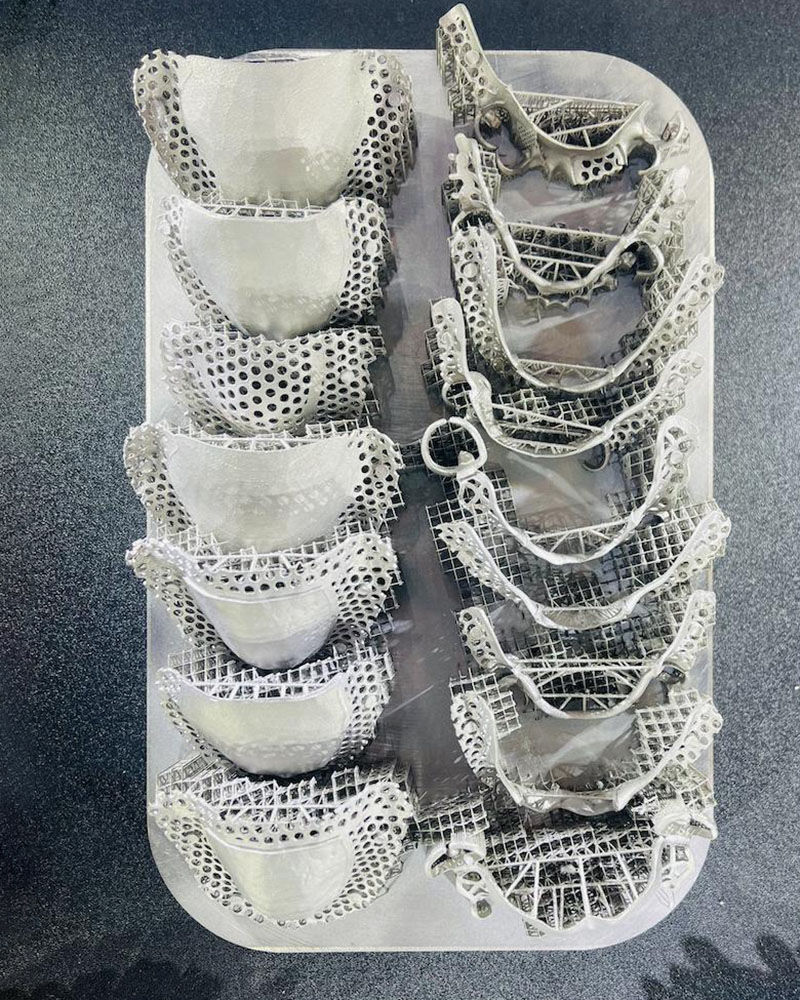

    Print samples

    22epr33bve

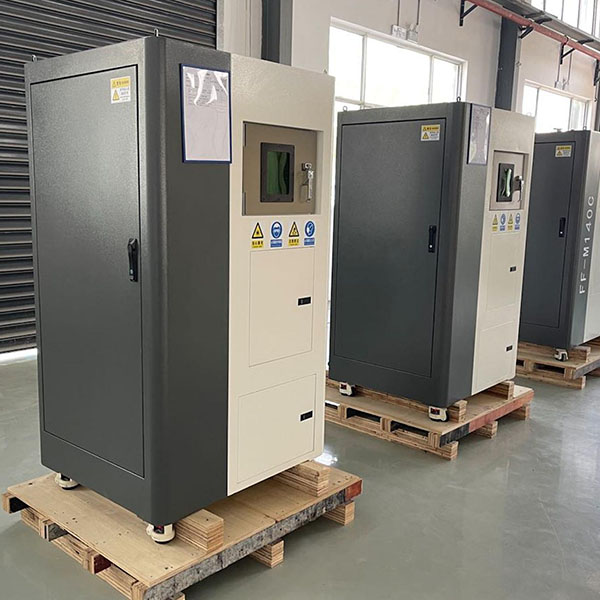

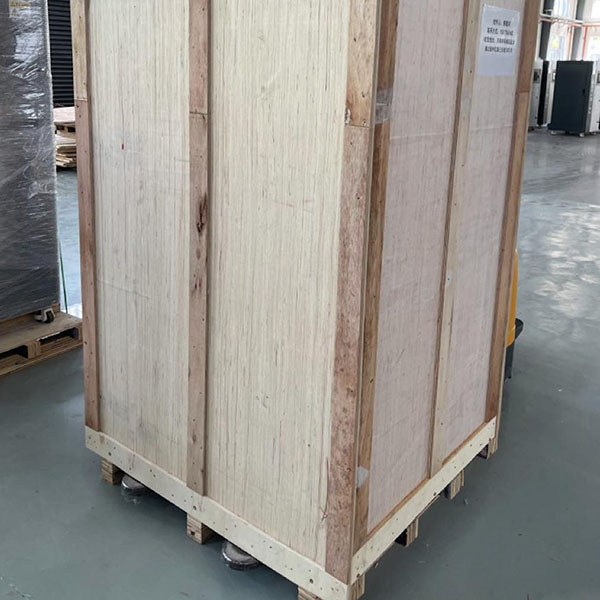

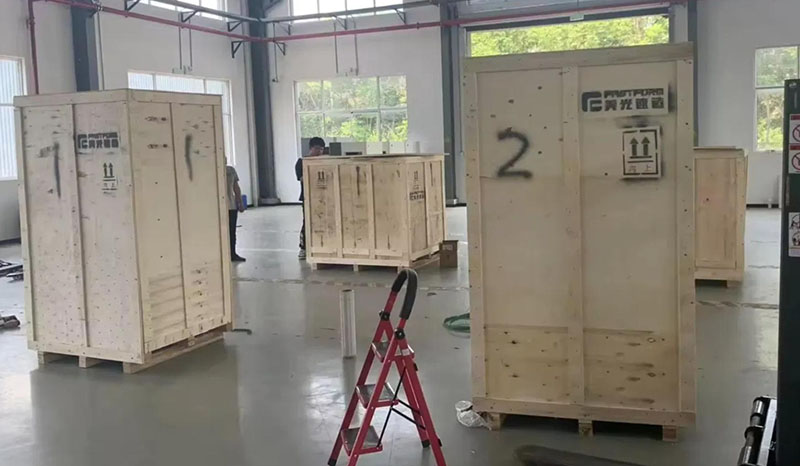

    Package Delivery

    200v2210vv22gd2
    23pfx24l9k

    After sales service

    Online consultant

    On-site maintenance
